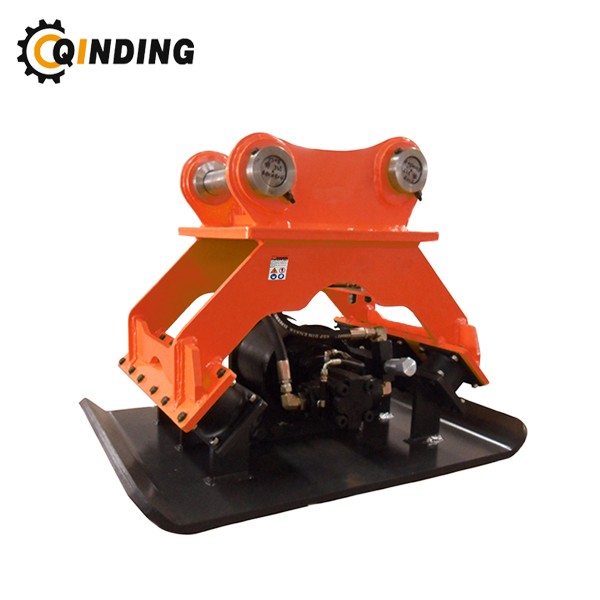

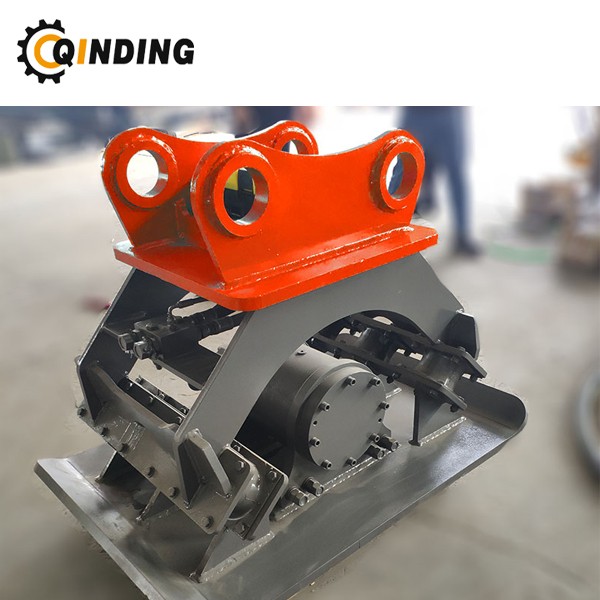

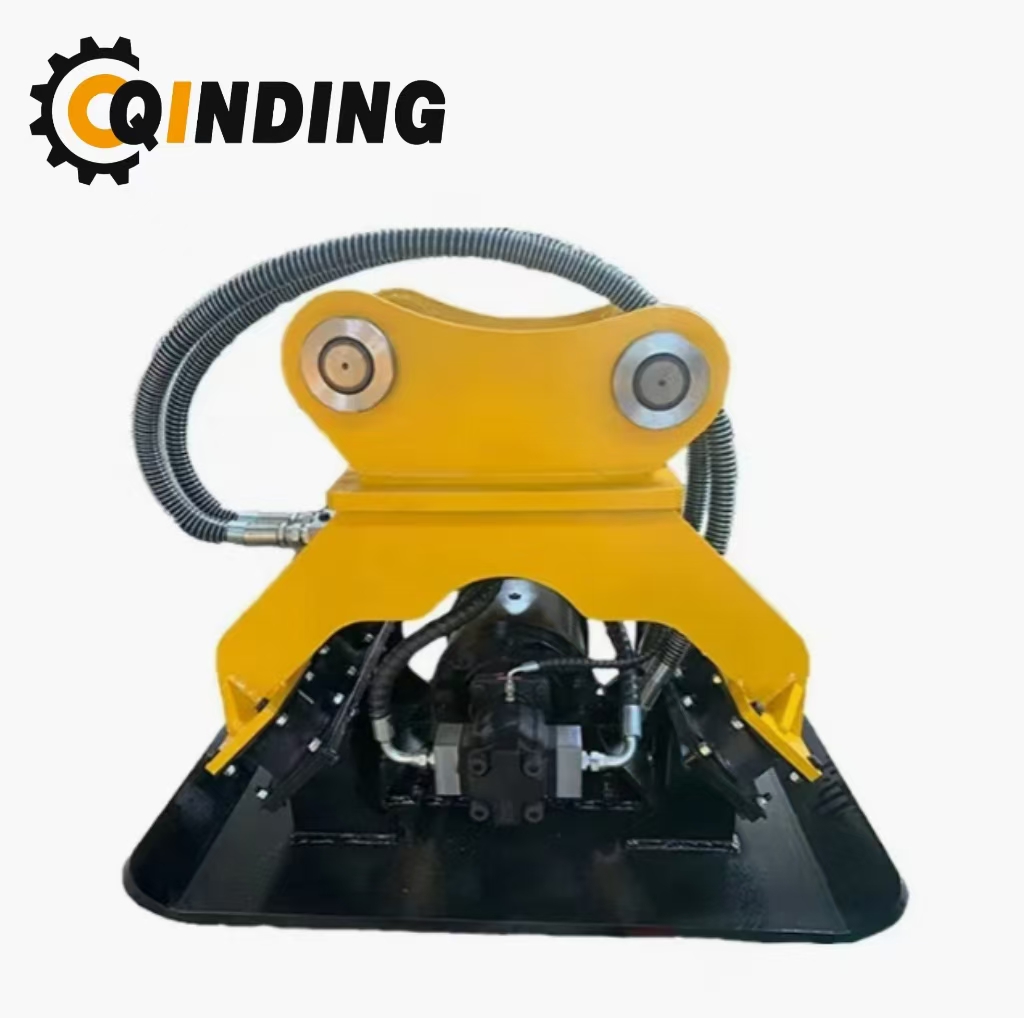

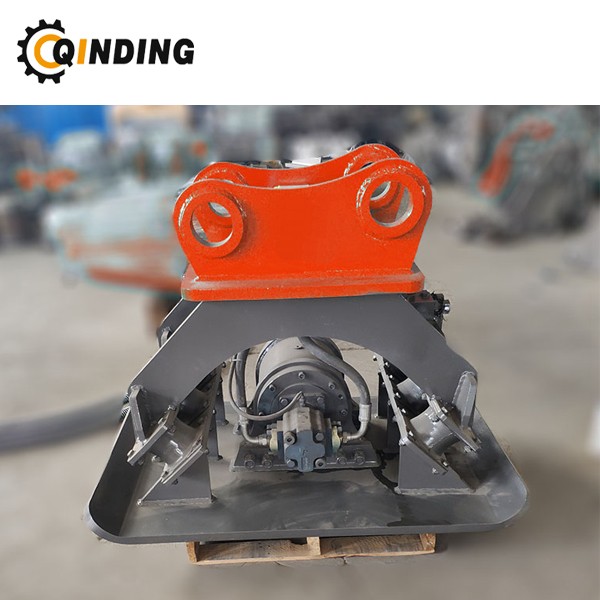

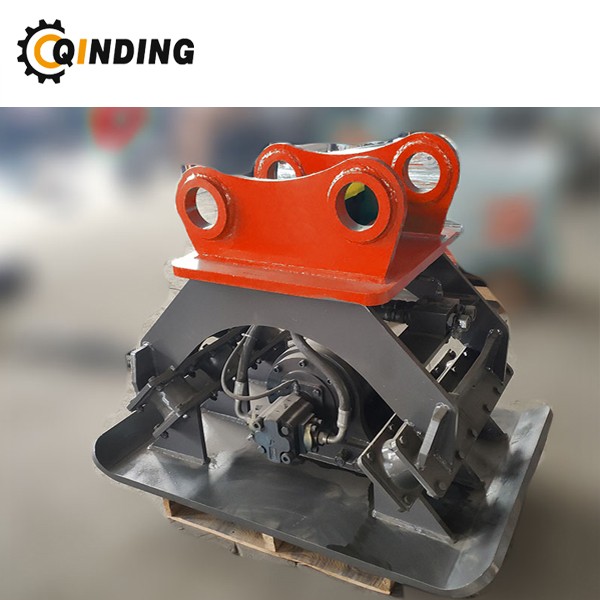

QINDING's vibrating plate compactor is built with high-strength steel and advanced vibration technology, delivering powerful impact and high-efficiency compaction performance, making it ideal for rapidly compacting soil, sand, gravel, and other foundational materials.
QINDING's vibrating plate compactor is built with high-strength steel and advanced vibration technology, delivering powerful impact and high-efficiency compaction performance, making it ideal for rapidly compacting soil, sand, gravel, and other foundational materials.
Product Features:
- Efficient Compaction: High-frequency vibration technology quickly compacts sand, gravel, asphalt, and other materials, improving construction efficiency.
- Durable Construction: Heavy-duty steel base plate + anti-vibration design, suitable for high-intensity operations with long service life.
- Compact & Portable: Lightweight body + ergonomic handle for easy operation, ideal for narrow or complex worksites.
- Low Maintenance: High-quality engine/motor ensures low failure rates and reduced maintenance costs.
unit | QDN04 | QDN06 | QDN08 | QDN10 | |
weight | kg | 300 | 500 | 900 | 950 |
power of impulse | ton | 4 | 6.5 | 15 | 15 |
maximum vibration rate | rpm | 2000 | 2000 | 2000 | 2000 |
oil flow | l/min | 45-75 | 85-105 | 120-170 | 120-170 |
pressure | kg/cm2 | 100-130 | 100-130 | 150-200 | 150-200 |
bottom measurement | L*W*T, mm | 900*550*25 | 1160*700*28 | 1350*900*30 | 1350*900*30 |
height | mm | 760 | 920 | 1060 | 1100 |
width | mm | 550 | 700 | 900 | 900 |
suitable excavator | ton | 4-9 | 11-16 | 17-23 | 24-30 |

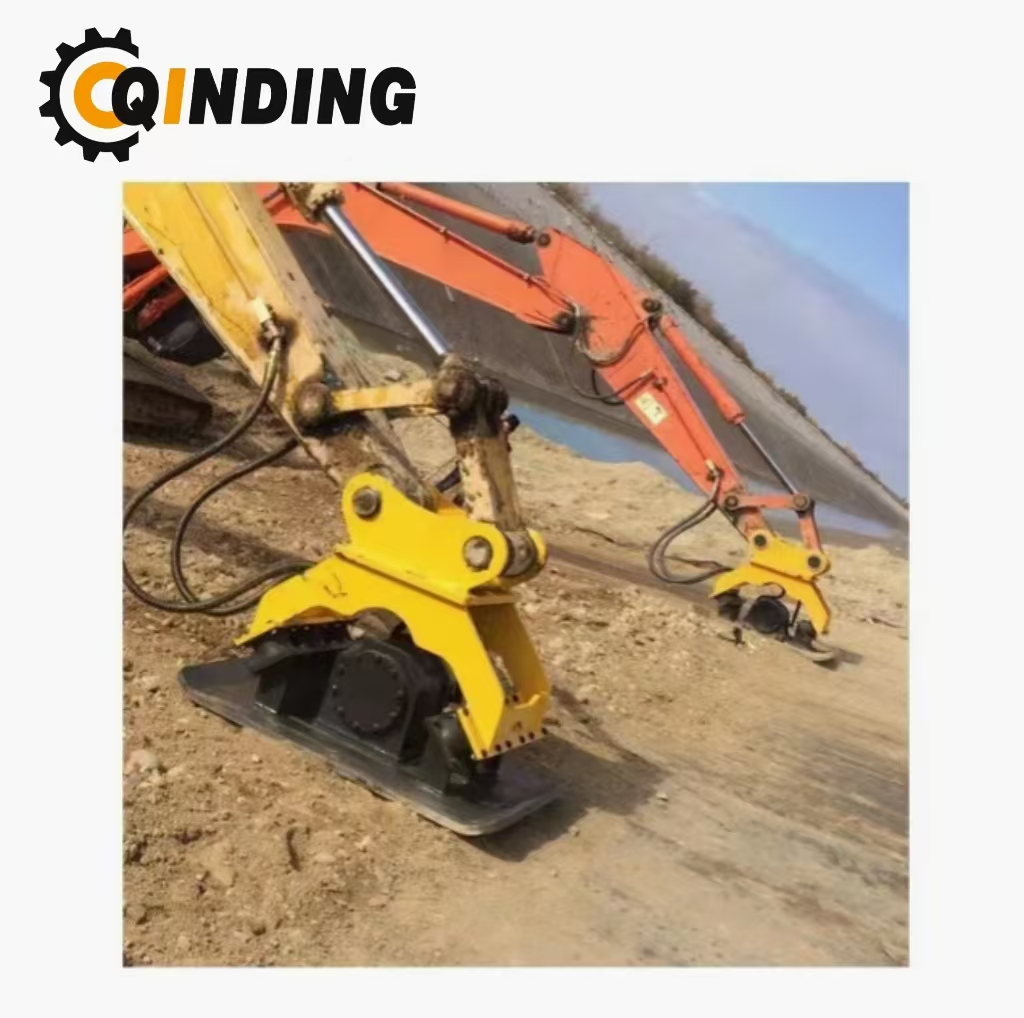

Volvo EC200 Excavator Hydraulic Vibrating Plate Compactors Applications:
